Part Number: X6PC7
/
Vendor ID Number: 27
/
Custom:

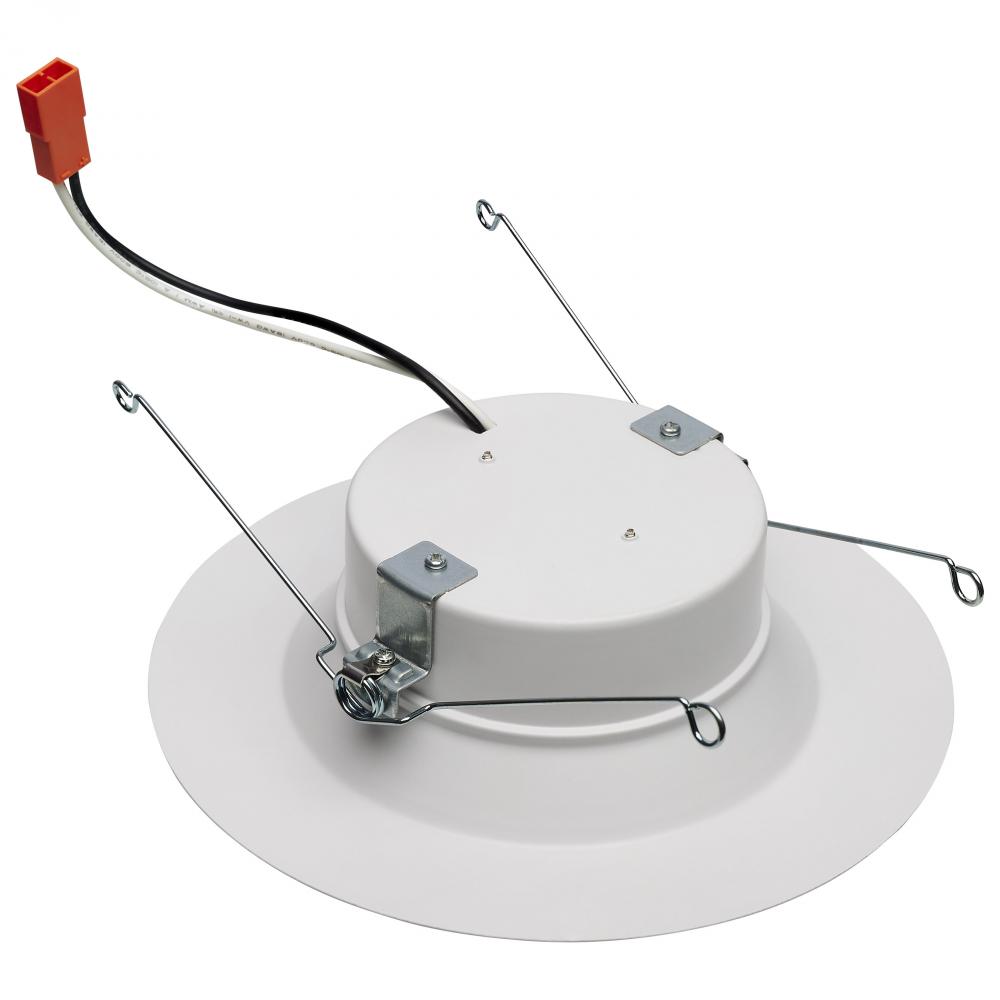

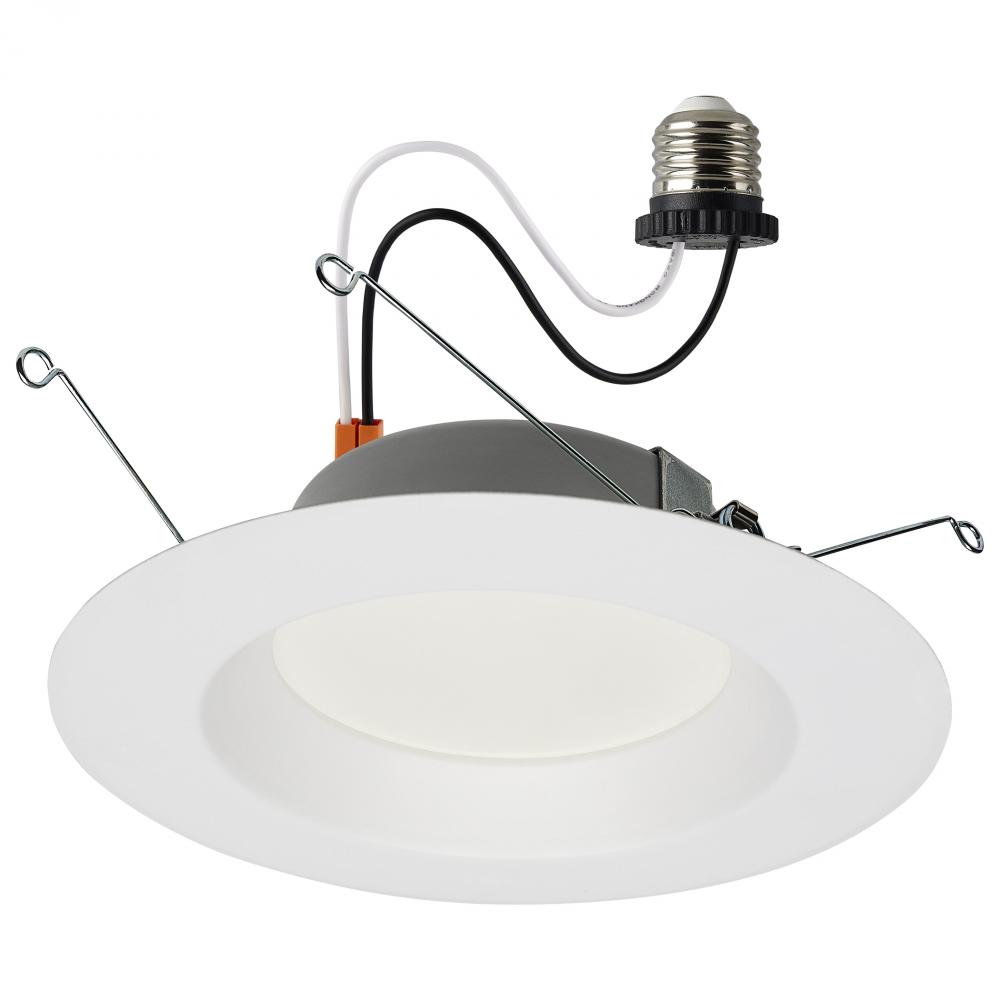

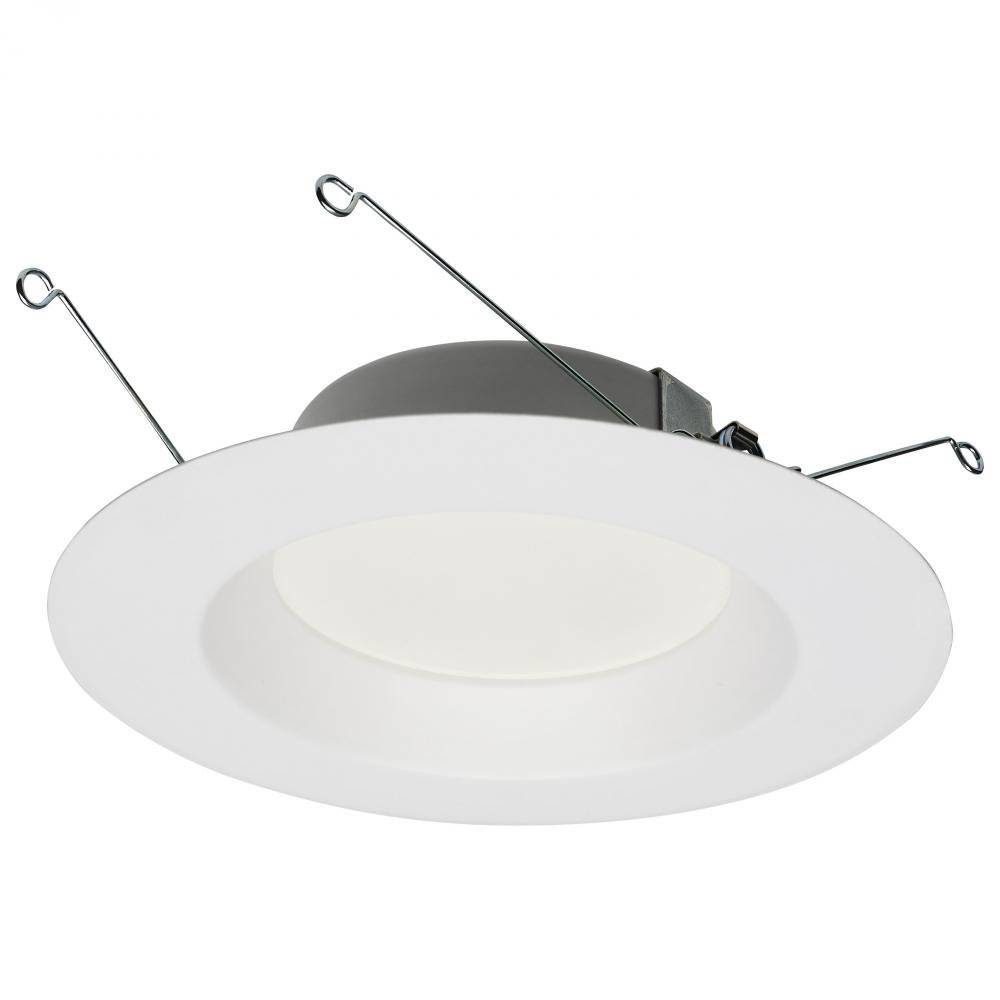

![12.5 Watt LED Downlight Retrofit; 5-6"; 4000K; 120 Volts; Dimmable; White Finish](/vendors/27/large/S11644.jpg "12.5 Watt LED Downlight Retrofit; 5-6"; 4000K; 120 Volts; Dimmable; White Finish")

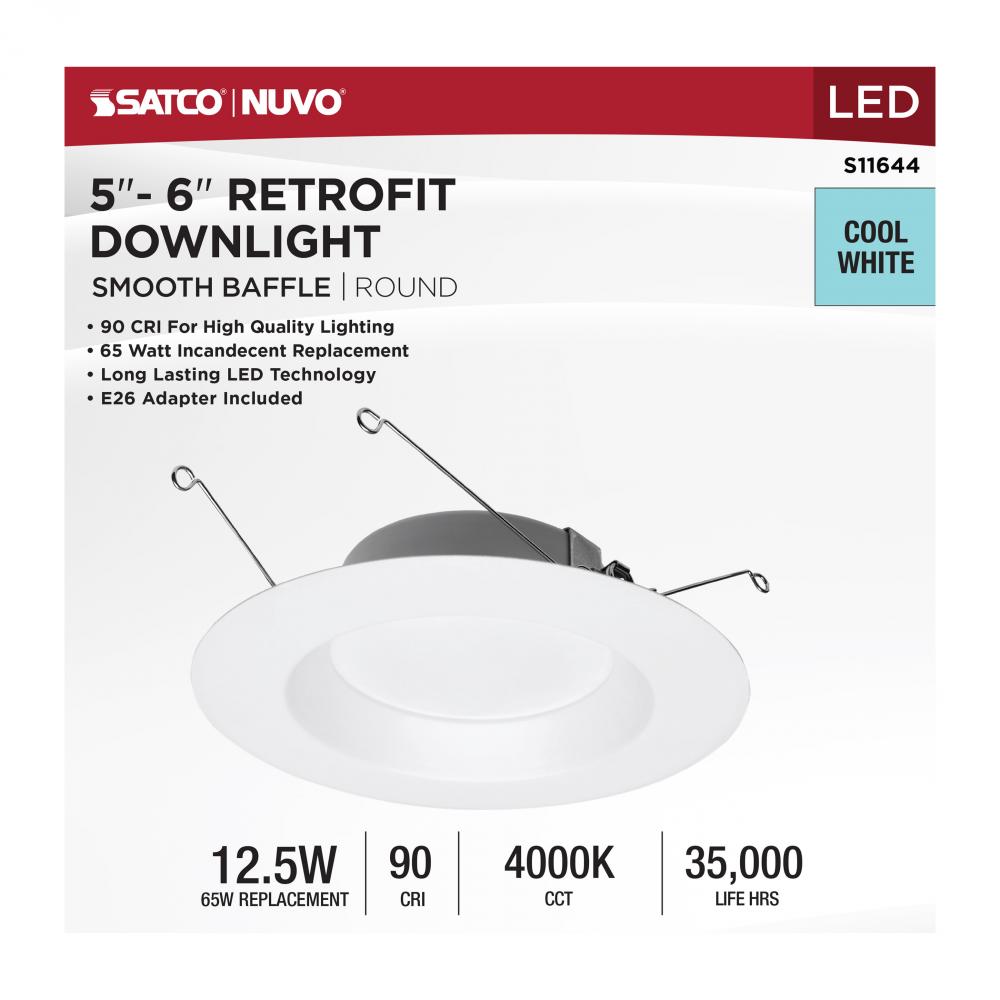

12.5 Watt LED Downlight Retrofit; 5-6"; 4000K; 120 Volts; Dimmable; White Finish
13
90
Pack Of: 1
Call for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 1.97"
Width: 7.36"
Finish
White
Product Overview
12.5 Watt LED Downlight Retrofit; 5-6"; 4000K; 120 Volts; Dimmable; White Finish
Product Availability
-
Purchase now and we'll ship when it's available
Technical Details
Details
Category:
Recessed Ltg.
Subcategory:
Recessed Lighting Trims
Finish:
White /vendors/vendorImages white.jpg
Option:
LED
Prop 65 /vendors/vendorImages prop65.png
Finish:
White /vendors/vendorImages white.jpg
Category:
Recessed
Sub Category:
Retrofits
Style:
Utility
Bulb Hours:
35000
Bulb Kelvin:
Cool White
Bulb Shape:
Integrated LED
Bulb Type:
LED
Diameter:
7.36
Dimmable:
Yes-Dimmable
Harmonized Codes:
8539.52.0091
Lumens:
900L
Ship Carton Height:
8.07
Ship Carton Length:
8.07
Ship Carton Width:
2.76
Warranty:
5 Year Limited - Fixtures
Air Tight:
Yes
Amps:
0.104A
ANSI Base:
E26 Adapter
Beam Spread:
100
CA Prop-65:
Lead
Can Size:
5-6 in.
Carton Cubic Feet:
0.104
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
California T24 2016 - 2022 JA8 Listed; T20 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
California T24 Listed
Ceiling Aperture:
5.36 in. Cutout
Connection:
Connector or Adapter
Country Of Origin:
China
CRI:
90+
Dimmable Down To:
100 to 10 percent
Dimming Type:
Phase cut
Efficacy:
72.00 LPW
FCC Compliant:
Yes

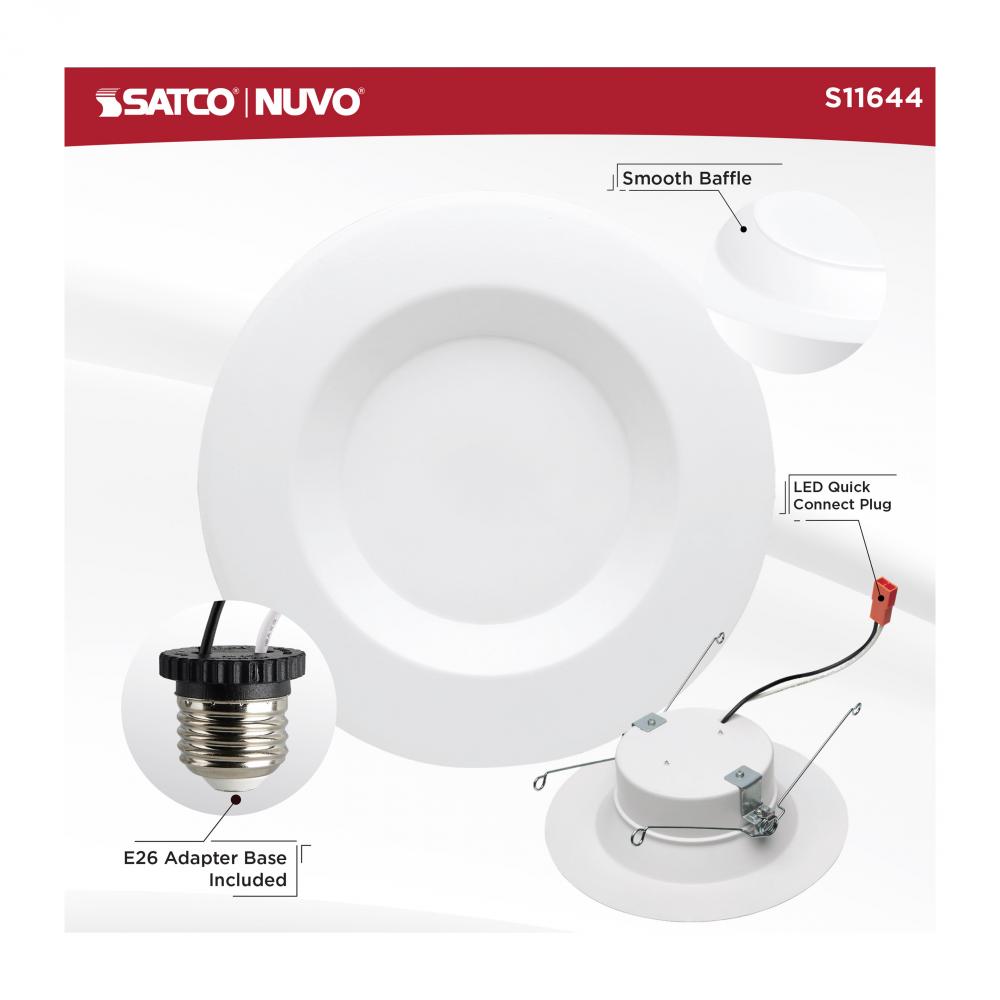

Feature 1:
Smooth Baffle Round
Feature 2:
90 CRI
Feature 3:
E26 Adapter
Feature 4:
Wet Location
Feature 5:
Compatible with 5-6 inch standard housing
Feature 6:
T24 Compliant
Feature 7:
Phase-Cut Dimmable down to 10 percent
Finish Family:
White
Fixture shape:
Round
IC Rated:
Yes
Incandescent Equivalent:
75W
Includes:

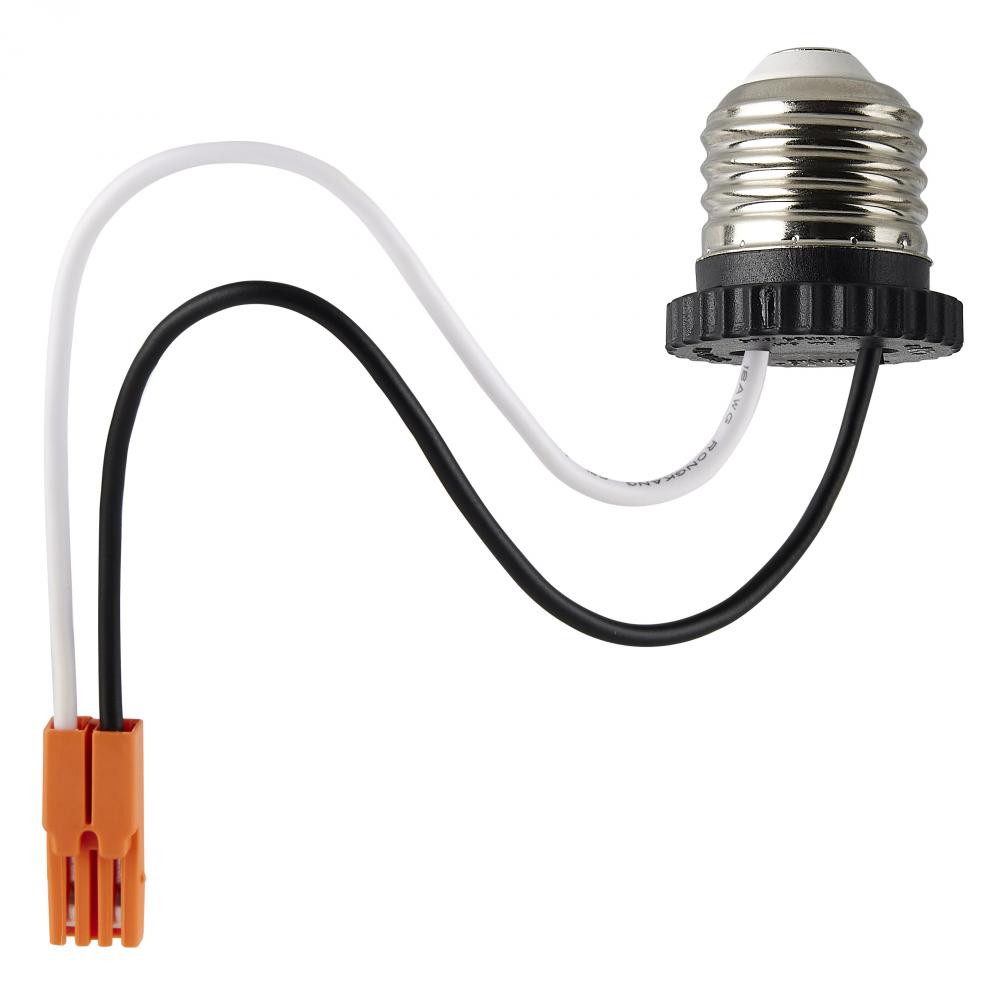

E26 Adapter included (S9001)
Indoor Outdoor:
Indoor
IOT Enabled:
No
JA8 Compliant:
Yes
Lens Finish:
White
Lens Material:
Polycarbonate (PC)
Long Description:
Elevate your lighting with SATCO NUVO's S11644 LED Retrofit Downlight, designed with impeccable color rendering. This retrofit is 12.5-watts with a beam spread of 100 degrees and a color temperature of 4000K, making it the perfect upgrade for existing
Material:
Die-Cast Aluminum
Minimum Compartment Size:
For the 5 in. Recessed Luminaire: Dia: 5.38, Height: 7.5; For the 6 in. Recessed Luminaire: Dia: 6 In, Height: 7.5 in
Mounting Procedure:
Ceiling
Operating Frequency:
60Hz
Operating Temprature:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
50
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
Elevate your lighting with SATCO NUVO's LED Retrofit Downlights, designed with impeccable color rendering. These retrofits include an E26 adapter making them the perfect upgrade to replace existing screw base lamps in downlight applications. Featuring
Safety Listing:
cULus - Certified;cULus - Classified;cRUus - Recognized Component
SDS class:
LED_Lamp
Short Description:
12.5WLED/RDL/5-6/940/120V
Temperature (CCT):
4000K
Title 20 Compliant:
Yes
Title 24 Compliant:
Yes
Total Harmonic Distortion:
<30%
Trim Color:
White
Wattage Selectable:
No
Weight Lb.:
0.6
