Item Sales Info
Part Number: X3JR7
/
Vendor ID Number: 27
/
Custom:
24 Watt; LED Direct Wire Downlight; Edge-lit; 8 inch; CCT Selectable; 120 volt; Dimmable; Square;
55
90
Pack Of: 1
- Manufacturers warehouse has 288 items available.
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 0.90"
Width: 8.86"
Finish
White
Product Overview
24 Watt; LED Direct Wire Downlight; Edge-lit; 8 inch; CCT Selectable; 120 volt; Dimmable; Square; Remote Driver
Product Availability
-
Item appears to be in stock and ready to ship
Technical Details
Details
Category:
Recessed Ltg.
Subcategory:
Other Recessed Ltg.
Finish:
White /vendors/vendorImages white.jpg
Style:
Traditional
Option:
LED
Prop 65 /vendors/vendorImages prop65.png
Lumens:
1601-2600
Kelvin:
4001-4500
Finish:
White /vendors/vendorImages white.jpg
Category:
Recessed
Sub Category:
Direct Wire
Style:
Utility
Additional Info:
Candlepower: 500
Bulb Hours:
50000
Bulb Kelvin:
Warm to Cool White
Bulb Shape:
Integrated LED
Bulb Type:
LED
Dimmable:
Yes-Dimmable
Harmonized Codes:
9405.11.8010
Length:
8.859999999999999
Lumens:
1750L
Ship Carton Height:
9.41
Ship Carton Length:
10.71
Ship Carton Width:
1.81
Warranty:
5 Year Limited - Fixtures
Air Tight:
Yes
Amps:
0.200A
ANSI Base:
Integrated
ANSI Code:
B08M8H94JR
BAA Compliant:
No
Beam Spread:
108
CA Prop-65:
Lead
Can Size:
8 in.
Carton Cubic Feet:
0.1056
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
California T24 2016 - 2022 JA8 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
California T24 Listed
Ceiling Aperture:
8.11 in. Cutout
Clearance Height:
2
Connection:
Direct Wired
Country Of Origin:
Vietnam
CRI:
90+
Dimmable Down To:
100 to 10 percent
Dimming Type:
Forward Phase or Reverse Phase or Phase Selectable
Efficacy:
72.92 LPW
FCC Compliant:
Yes
Feature 1:

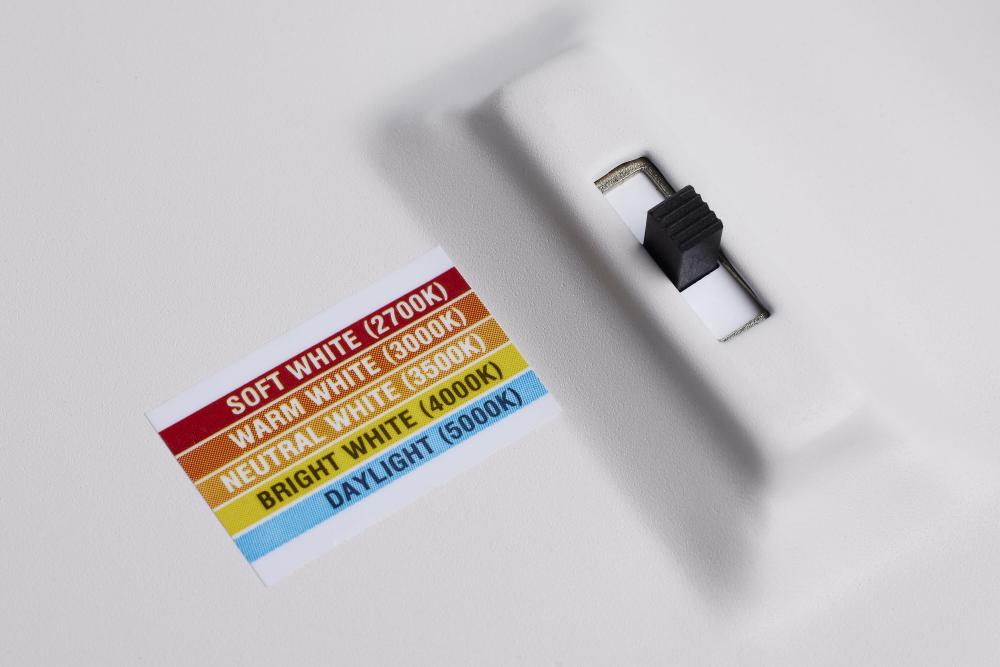

ColorQuick CCT Selectable
Feature 2:
90 CRI
Feature 3:
Wet Location Rated
Feature 4:
Dimmable
Feature 5:
IC Rated
Feature 6:
Air Tight Rated
Feature 7:
Title 24 Compliant
Feature 8:
108-Degree Beam Angle
Feature 9:
120V
Finish Family:
White
Fixture shape:
Square
Has Driver:
Yes
IC Rated:
Yes
Incandescent Equivalent:
85W
Indoor Outdoor:
Indoor
IP Rating:
IP20
JA8 Compliant:
Yes
Lens Finish:
Frost
Lens Material:
Poly methyl methacrylate (PMMA)
Long Description:
SATCO NUVO's S11831 LED Slimfit Downlight is among the most versatile lighting fixtures on the market. CCT Selectable at installation to personalize any space from kitchens, dens and offices to theater rooms and hotels with warm to cool dimmable light.
Material:
Aluminum
Max Drywall Thickness:
1/2 in.
Mounting Procedure:
Ceiling
Operating Frequency:
60Hz
Operating Temprature:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
50
Rec Spacing Between Fixtures:
6 ft. to 8 ft.
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's LED Slimfit Downlights are among the most versatile lighting fixtures on the market. CCT Selectable at installation to personalize any space from kitchens, dens and offices to theater rooms and hotels with warm to cool dimmable light. A va
Safety Listing:
cETLus - Listed
SDS class:
LED_Lamp
Short Description:
24WLED/DW/EL/8/CCT-SEL/SQ/RD
Sloped Ceiling Compatible:
No
Specification Notes:
Lumens (L) vary with color temperature (K): 2700K 1650L / 3000K 1700L / 3500K 1800L / 4000K 1800L / 5000K 1750L
Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
Yes
Total Harmonic Distortion:
<20%
Trim Color:
White
Trim Material:
Aluminum
Wattage Selectable:
No
Weight Lb.:
1.81
