Item Sales Info
Part Number: A99NU
/
Vendor ID Number: 81
/
Custom:

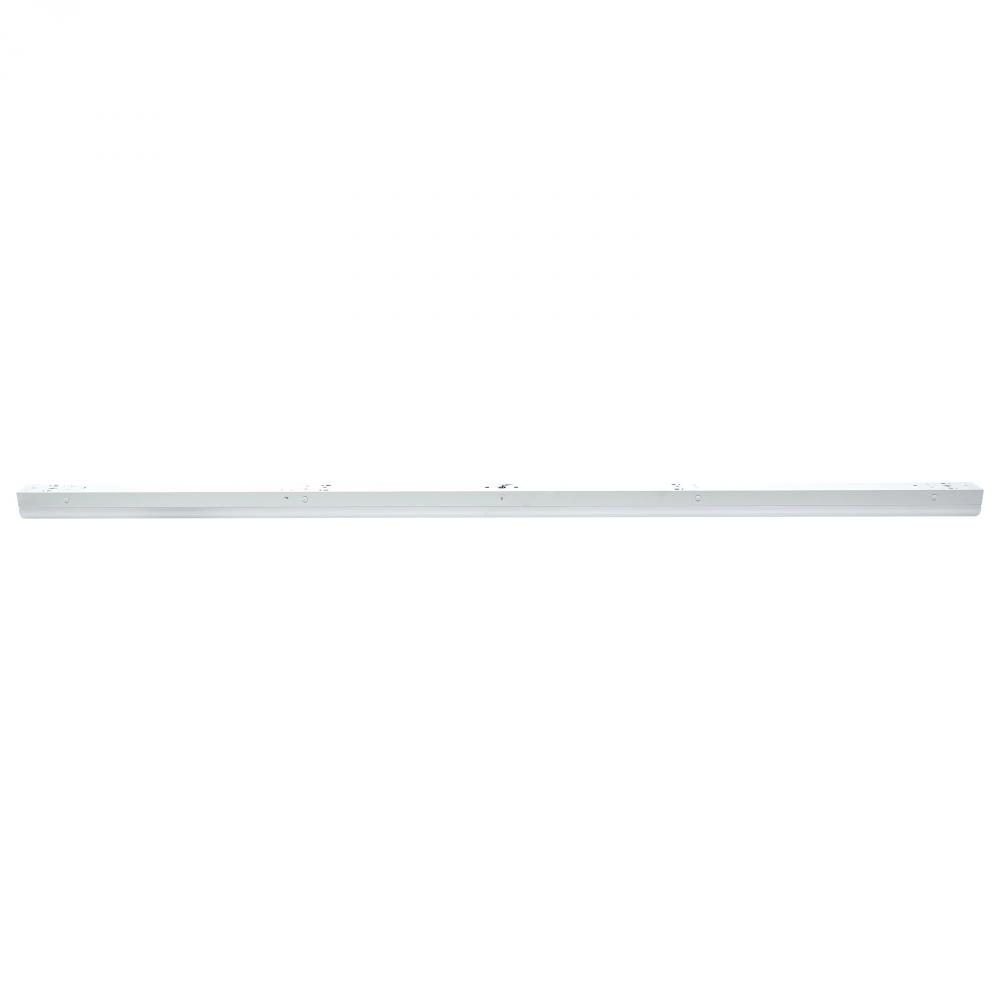

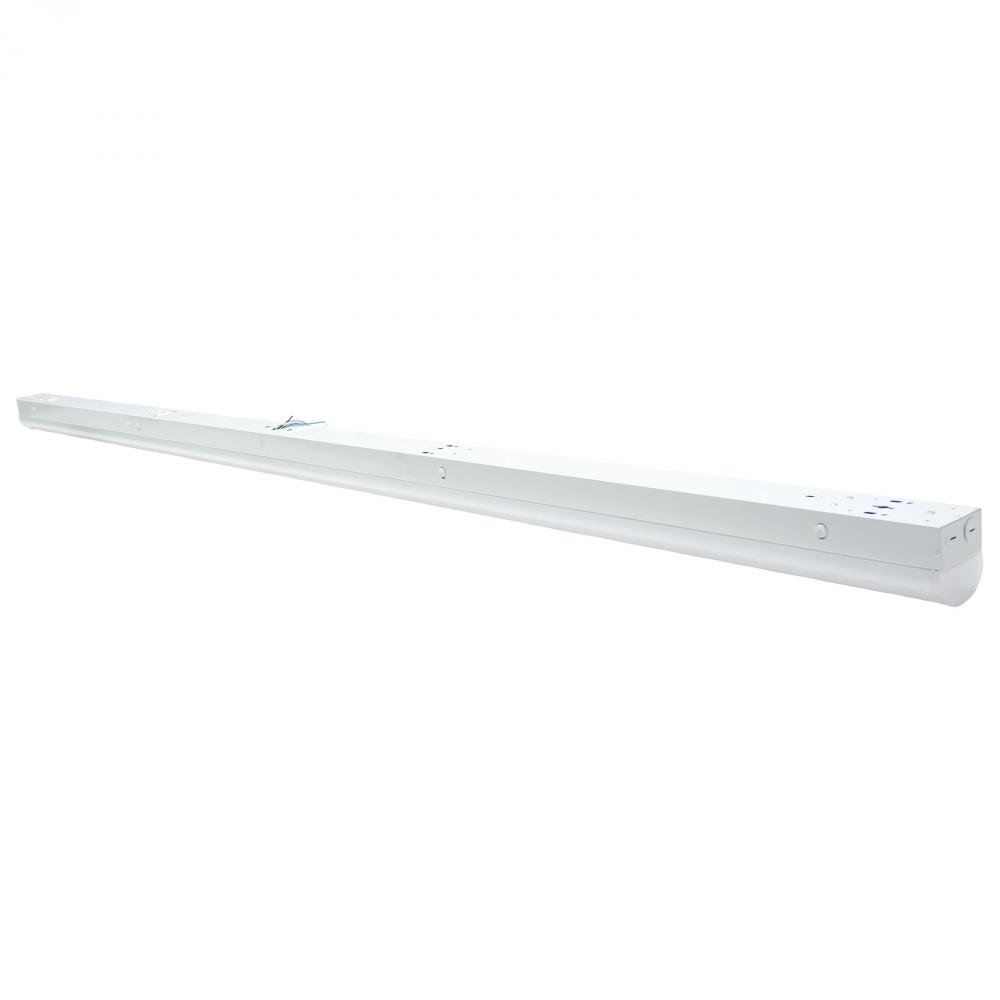

8 Foot LED Linear Strip Light; Field Selectable; White Finish
144
99
Pack Of: 1
- Manufacturers warehouse has 80 items available.
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 3.27"
Width: 2.95"
Finish
White
Product Overview
8 Foot LED Linear Strip Light; Field Selectable; White Finish
Product Availability
-
Item appears to be in stock and ready to ship
Technical Details
Details
Category:
Undercabinet
Subcategory:
Strip Lights
Option:
LED
Prop 65 /vendors/vendorImages prop65.png
Finish:
White /vendors/vendorImages white.jpg
Category:
Linear Strip
Sub Category:
Strip Fixture
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Neutral White to Daylight
Dimmable:
Yes-Dimmable
Each Height:
5.32
Each Length:
98.03
Each Width:
5.2
Length:
96
Lumens:
7800L-11200L
Tariff Code:
9405.11.6010
Warranty:
5 Year Limited - Fixtures
Amps:
0.500-0.173/0.583-0.202/0.667-0.231A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
120
B_U_G_Rating:
B3-U4-G3
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Connection:
Hardwire
Country Of Origin:
Vietnam
CRI:
80+
Dimmable Down To:
100 to 10 percent
Dimmable Function:
0-10V Dimming Only
DLC Classification:
Premium; Standard; Standard
DLC Primary Use:
Stairwell and Passageway Luminaires;Low-Bay Luminaires for Commercial and Industrial Buildings;Direct Linear Ambient Luminaires
Each Cube:
1.5694
Each Quantity:
1
Efficacy:
130.00/140.00/135.00 LPW
FCC Compliant:
Yes
Feature 1:
Field Selectable (Wattage and CCT)
Feature 2:
Flicker Free Driver
Feature 3:
Multiple Mounting Options
Feature 4:
8-Foot, Standard Model
Feature 5:
Durable, Polycarbonate Lens
Feature 6:
Damp location rated
Feature 7:
Numerous Accessories Available (Sold Separately)
Feature 8:
5 Year Warranty
Feature 9:
50,000 Hour Functional Life
Finish Family:
White
Flicker Free:
Yes
Has Driver:
Yes
Incandescent Equivalent:
550W
Indoor Outdoor:
Indoor
IP Rating:
IP20
JA8 Compliant:
No
Lens Finish:
White
Lens Material:
Polycarbonate (PC)
Long Description:
SATCO NUVO's 65-703R1 8-foot LED Linear Strip Fixture offers adaptable lighting for diverse applications. This field-selectable fixture provides wattage options of 60W, 70W, or 80W and color temperature settings of 3500K, 4000K, or 5000K. With a univer
Material:
Steel
Mounting Diameter:
4.75
Mounting Height:
0.06
Mounting Procedure:
Ceiling/Wall
NSF Approved:
No
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +60C (+140F)
Order In Multiples Of:
1
Pack Type:
Box
Photocell:
Optional Add-On
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
27
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO offers LED Linear Strip Fixtures in 2, 4, and 8-foot sizes, providing versatile lighting solutions for a range of applications. All fixtures are CCT selectable with 3500K, 4000K, and 5000K options, allowing users to adjust the color temperature
Safety Listing:
cULus - Certified
SDS class:
LED_Fixture
Short Description:
8' LINEAR STRIP WHITE FINISH
Sloped Ceiling Compatible:
Yes
Temperature (CCT):
3500K/4000K/5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
15%
Wattage Selectable:
Yes
Weight Lb.:
6.84
