Item Sales Info
Part Number: X6V8M
/
Vendor ID Number: 27
/
Custom:
8 Watt LED Downlight Retrofit; 5-6 Inch; CCT Selectable; Square; White Finish
14
20
Pack Of: 1
- Manufacturers warehouse has 5899 items available.
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification

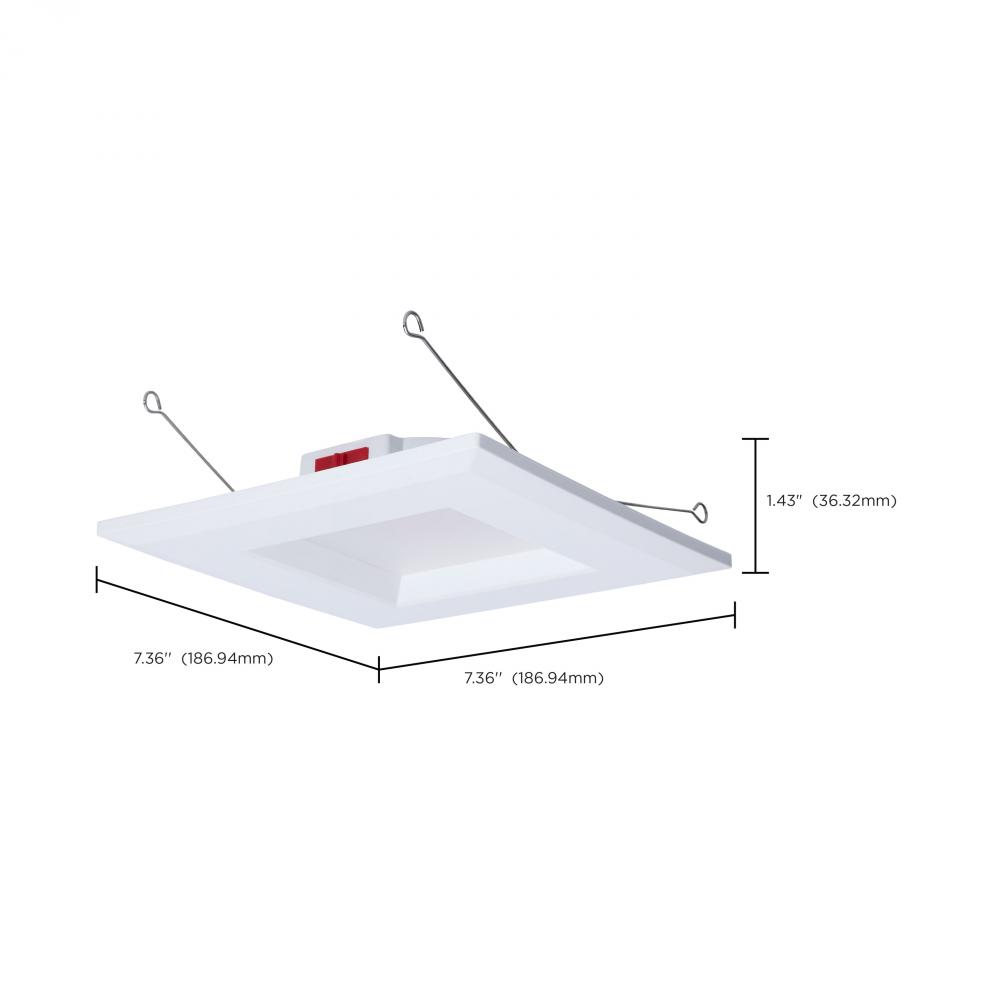

Dimensions
Height: 1.43"
Width: 7.36"
Finish
White
Product Overview
8 Watt LED Downlight Retrofit; 5-6 Inch; CCT Selectable; Square; White Finish
Product Availability
-
Item appears to be in stock and ready to ship
Technical Details
Details
Category:
Recessed Ltg.
Subcategory:
Other Recessed Ltg.
Option:
Energy Star /vendors/vendorImages energy star.jpg
LED
Prop 65 /vendors/vendorImages prop65.png
Finish:
White /vendors/vendorImages white.jpg
Category:
Recessed
Sub Category:
Retrofits
Style:
Utility
Bulb Hours:
50000
Bulb Kelvin:
Warm White to Natural Light
Bulb Shape:
Integrated LED
Bulb Type:
LED
Dimmable:
Yes-Dimmable
Harmonized Codes:
8539.52.0091
Length:
7.36
Lumens:
650L
Ship Carton Height:
8.27
Ship Carton Length:
7.48
Ship Carton Width:
1.69
Warranty:
5-Years
Air Tight:
Yes
Amps:
0.075A
ANSI Base:
E26 Adapter
Beam Spread:
90
CA Prop-65:
Lead
Can Size:
5-6 in.
Carton Cubic Feet:
0.0605
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
California T24 2016 - 2022 JA8 Listed; T20 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Ceiling Aperture:
5.36 in. Cutout
Country Of Origin:
China
CRI:
90+
Dimmable Down To:
100 to 10 percent
Dimmable Function:
120V only
Dimming Type:
Phase cut
Efficacy:
86.67 LPW
ES Category:
Downlight Solid State Retrofit
ES Unique ID:
ESID-3942762
FCC Compliant:
Yes
Feature 1:
5 CCT Selectable
Feature 2:
Smooth Baffle for Reduced Glare
Feature 3:
Non-Conductive "Dead-Front" Trim
Feature 4:
Dimmable
Feature 5:
E26 Adapter Included
Feature 6:
90 CRI
Feature 7:
Wet location rated
Feature 8:
50,000 Hour Functional Life
Feature 9:
5 Year Warranty
Finish Family:
White
Fixture shape:
Square
Has Emergency Battery:
No
Incandescent Equivalent:
50W
Indoor Outdoor:
Indoor
Installation Notes:
Default CCT setting is 3000K
JA8 Compliant:
Yes
Lens Finish:
Matte Frosted
Lens Material:
Plastic
Long Description:
SATCO NUVO's S12603 5/6-inch square, 7.5W, Performer Series LED Retrofit Downlight combines effortless installation with a sleek, functional design. Its smooth regress baffle minimizes glare, while the integrated on-unit switch allows easy selection fr
Material:
Plastic
Mounting Diameter:
5.04
Mounting Height:
4.72
Operating Frequency:
60Hz
Operating Temprature:
-20C (-4F) to +40C (+104F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
50
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's Performer Series LED Retrofit Downlights offer easy installation with a refined design. Available in 4-inch and 5/6-inch models with round or square trims, they feature a smooth regress baffle to reduce glare and a convenient on-unit switc
Safety Listing:
cETLus - Classified
SDS class:
LED_Fixture
Short Description:
8WLED/DLR/5-6/5CCT/E/SQ/WH
Sloped Ceiling Compatible:
No
Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
Yes
Title 24 Compliant:
Yes
Trim Material:
Plastic (PS)
Wattage Selectable:
No
Weight Lb.:
0.5
