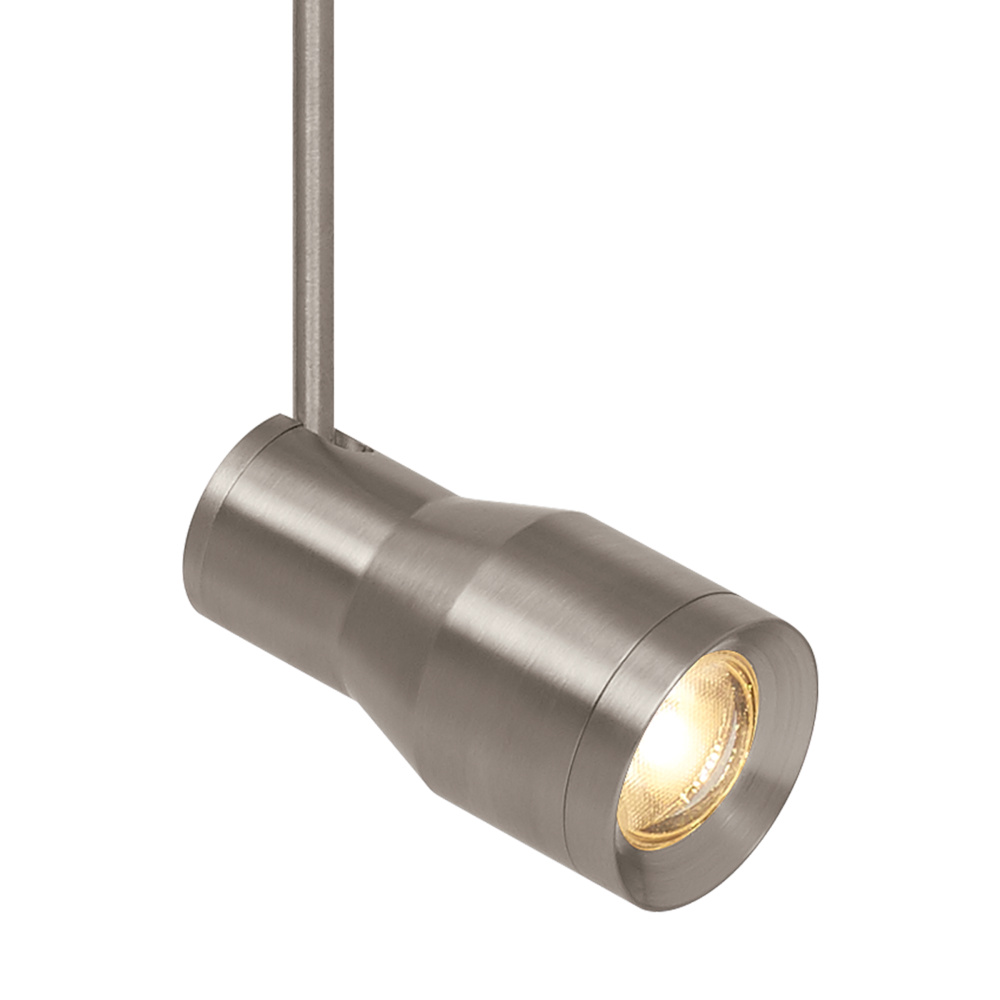

The Ace Task Head light by Sean Lavin for Visual Comfort Modern is simply efficient featuring a classic adjustable spot head design with variable stem lengths and beam spread choices. Available in modern finishes. This practical and efficient task head scales at 3.5" in length and 1.8" in width making it ideal for residential and commercial lighting spaces. Combine the Ace Task Head with our complementary MonoRail system for even greater design customization in your unique space. The Ace comes with your choice of two integrated LED lamp options, both lamps are fully dimmable to create the desired ambiance in your any space.

Includes 12 Volt 9.4 Watt, 518.5 Delivered Lumens, 2700K Or 3000K, LED Module. Dimmable With Most LED Compatible Or Elv And Triac Dimmers. Ace Head Can Pivot 90° (Horizontal To Straight Down). Integrated Lens Holder Accommodates Up To (2) Lenses And Louvers (Sold Separately). As A General Rule When Using The Ace Head, We Do Not Recommend Using Greater Than 33% Of The Maximum Wattage Specified For The Low Voltage Transformer Due To Inrush Current Requirements. For Assistance In Calculations, Please Contact Technical Support.

Product Availability

Finish:

Kelvin:

Additional options that would change other selections

Additional Information

5 year warranty with no lamping option. 5 year warranty with LED lamping option, visit techlighting.com for more warranty details

Ace head can pivot 90° (horizontal to straight down)

Ace head only compatible with AC transformers

Adjustable spot head design and variable stem length options available

As a general rule when using the Ace head, we do not recommend using greater than 33% of the maximum wattage specified for the low voltage transformer due to inrush current requirements

Available in modern finishes

Compatible with MOCGG, MOCSF, MOCLL, MOCEC, MOCLS1 AND MOC LS12 lenses.

Dimmable with most LED compatible or ELV and Triac dimmers

Efficient, classic adjustable spot head design

For assistance in calculations, please contact Technical Support

Fully dimmable integrated LED lamp

Idea for residential and commercial lighting applications

Includes 12 volt 9.4 watt, 518.5 delivered lumens, 2700K or 3000K, LED module

Integrated lens holder accommodates up to (2) lenses and louvers (sold separately)

Technical Details

Details

Category:

Track Ltg.

Subcategory:

Track Heads

Finish:

Nickel /vendors/vendorImages nickel.jpg

Style:

Contemporary

Industrial

Option:

Title 24 /vendors/vendorImages ca title 24 compliant.jpg

Dry Rated

LED

Kelvin:

2501-3000

Category:

Low-Voltage Heads

Finish:

Satin Nickel

Style:

Contemporary

Option:

LED

Title 24 /vendors/vendorImages ca title 24 compliant.jpg

Family:

Ace

Voltage:

12 V

Shade:

Metal Task Head

Number of Bulbs:

1 Bulbs

Bulb Dimmable:

Yes

Bulb Shape:

Integrated LED

Designer:

Sean Lavin

Diameter:

1.9

Introduction Date:

01/01/2018

Kelvin:

3000

Keyword(s):

Commercial Space, Family Room, Office

Lumens / Light Output:

518.5

Material:

Metal

Max Height:

Ship Carton Height:

Ship Carton Length:

Ship Carton Width:

Ship Weight:

2.5

Vendor Ship Method:

UPS, FedEx

Warranty:

5 Years

Weight:

1.5

ADA Compliant:

Adjustable Head:

Yes

Battery Included:

Bulb CRI:

Bulb Included:

Yes

Bulb Wattage:

9.4 W

Cable Field Cuttable:

Country of Origin:

Dark Sky:

Dimmer Type:

ELV, TRIAC

Efficacy:

55.2

Energy Star:

Hardware Material:

Metal

IP65 Rated:

Is Solar Powered:

L70:

>50000

LED:

Yes

Location Rating:

Dry Rated

Max Wattage:

9.4 W

MIN Height:

Photocell Included:

Prop 65:

Replaceable Lamp:

Reversable:

Safety Rating:

ETL Approved

Shade Diameter:

1.9

Shade Height:

1.9

Shade Length:

3.6

Shade Material:

Metal

Shade Width:

1.9

Sloped Ceiling Compatible:

Stocking Type:

Finished Good

Style-2:

Mid-Century, Industrial

SYSTEM:

FreeJack

Title 20:

Title 24:

Yes

Total Wattage:

9.4 W

Warm Color Dimming:
