Item Sales Info
Part Number: G7QX
/
Vendor ID Number: 90
/
Custom:

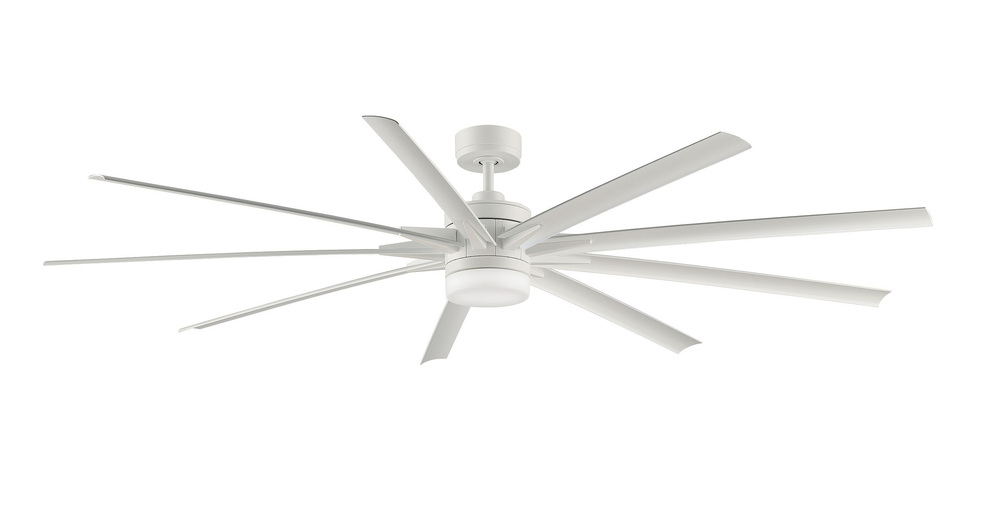

Odyn - 84 inch - MWW with MW Blades and LED
359
98
Pack Of: 1
28 In Stock
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 18.00"
Width: 84.00"
Product Overview
The Odyn, by Fanimation, knows its the boss whenever it enters a room. Its magnificence commands immediate attention and will surely dazzle onlookers. The Odyn's DC motor allows this fan to consume up to 70% less energy. The Odyn can accommodate up to an 84 inch blade sweep and operates on six forward and reverse speeds. The fan includes a remote control and a cap for use without light. Blades sold separately. *Wet Rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use
The Odyn, by Fanimation, knows its the boss whenever it enters a room. Its magnificence commands immediate attention and will surely dazzle onlookers. The Odyn's DC motor allows this fan to consume up to 70% less energy. The Odyn can accommodate up to an 84 inch blade sweep and operates on six forward and reverse speeds. The fan includes a remote control and a cap for use without light. Blades sold separately. *Wet Rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use
Product Availability
-
Item appears to be in stock and ready to ship
Additional Information
10,236 Cfm On High
Compatible With Most Smart Home Devices (required Controls Sold Separately)
Dc Motor With Reverse Switch, Variable Fan Speeds, Light Control, Sleep Timer, Home Away, Fresh Air
Energy Star Most Efficient 2020
Set Of (9) 84 Inch Wet Rated Blades And 18 Watt Led Light Kit With Cover And Bulb Included
Tr205 Handheld Remote With Cr2032 Batteries Included
Technical Details
Energy Information at High Speed
Airflow:
10104 Cubic Feet per Minute
Electricity Rate:
32 Watts (excluded lights)
Airflow Efficiency:
314 Cubic Feet Per Minute Per Watt
Details
Category:
Fans
Subcategory:
Ceiling Fans with Light
Finish:
White /vendors/vendorImages white.jpg
Style:
Traditional
Option:
LED
Glass Finish or Style:
Frosted
Opal
Number of Blades:
8 Plus Blades
Category:
Fan-Uni
Finish:
Matte White
Family:
Odyn 84
Glass:
Opal Frosted
Voltage:
240 V
Number of Bulbs:
1 Bulbs
Additional Info:
10,236 CFM on High
Compatible with most Smart home devices (required controls sold separately)
DC motor with reverse switch, variable fan speeds, light control, sleep timer, home away, fresh air
ENERGY STAR Most Efficient 2020
Set of (9) 84 inch Wet Rated blades and 18 watt LED light kit with cover and bulb included
TR205 handheld remote with CR2032 batteries included
Air Flow CFM:
10104
Air Flow Efficiency:
314
Amperage:
0.46
Blade Finish:
Matte White
Blade Pitch:
12
Blade Span:
84
Bulb Type:
18 Watt LED Module
Canopy:
6.46 Dia x 2.58 H
Diameter:
8.27
Down Rod Included:
6
Electricity Used:
32
Harmonized Codes:
8414.51.3000
Kelvin:
3000
Length:
84
Light Kit Included:
Yes
Lumens / Light Output:
1460
Material:
Composite
Motor Fan Speed:
6
Motor RPM:
61
Motor Size:
DC-165L
Motor Type:
DC
Remote Control Included:
TR39ND-220
Ship Carton Height:
12.87
Ship Carton Length:
40.08
Ship Carton Width:
10.47
Ship Weight:
35.92
Sold By:
Each
Warranty:
Limited Lifetime
Weight:
32.15
Airflow Efficiency Low:
834
Airflow Efficiency Medium:
535
Airflow Efficiency Medium High:
410
Airflow Efficiency Medium Low:
662
Airflow Efficiency Mini:
998
Blade Finish Method:
Painted
Blade Material:
Composite
Blade Reversible:
No
Blade Sweep:
84
Bulb Base:
Connector Pin
Bulb CRI:
80
Bulb Wattage:
18
Canopy Diameter:
6.46 Dia
Canopy Height:
2.58 H
Cap Included:
No
Carton Cubic Feet:
3.13
Cartons Per Unit:
1
Case Height:
12.87
Case Length:
40.08
Case Quantity:
1
Case Weight Pounds:
35.92
Case Width:
10.47
CEC Uploaded:
No
Ceiling To Blade Edge:
11.72
Ceiling To Bottom:
15.14
16.52
CFM Low:
5645
CFM Medium:
7923
CFM Medium High:
8994
CFM Medium Low:
6682
CFM Mini:
4453
Compatible Accessories:
DR1-12MW, DR1-18MW, DR1-24MW, DR1-36MW, DR1-48MW, DR1-60MW, DR1-72MW, DR1-CPMW, SCB1-52
Country of Origin:
China
CRI:
80
Current Draw High:
0.46
Current Draw Low:
0.11
Current Draw Medium:
0.23
Current Draw Medium High:
0.33
Current Draw Medium Low:
0.16
Current Draw Mini:
0.08
DOE-FTC Uploaded:
No
DOEFTC Uploaded:
No
Downrod Length:
6
Exempt from DOE Procedure:
Yes
Housing Diameter:
8.27
Included Control:
TR39ND-220
Included Control Type:
Handheld
IP Rating:
IP20
Leadwire:
80
Max Ceiling Slope:
27
Max Watt:
32
Maximum Slope Degree:
27
Motor Finish Method Type:
Painted
Motor Reversible:
Yes
Number of Blades:
9
Number Of Speeds:
6
Regulated Product:
Yes
Reverse Switch Location:
Control
RPM High (VI):
61
RPM Low (II):
36
RPM Medium (IV):
49
RPM Medium High (V):
55
RPM Medium Low III:
42
RPM Mini (I):
31
RPM Mini I:
65
Safety Rating:
TUV Rheinland Approved
Voltage Cycles:
50 hz
Watts Low:
7
Watts Medium:
15
Watts Medium High:
22
Watts Medium Low:
10
Watts Mini:
4
Watts Per Bulb:
18
